HF30W-EDR-12_衡孚开关电源

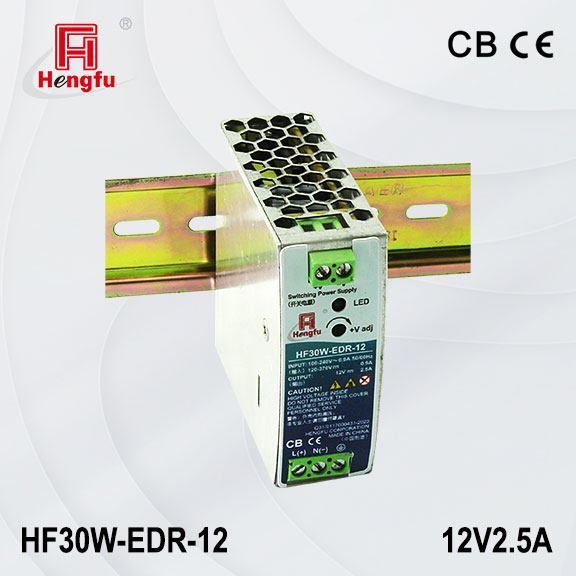

*Image for reference only. Subject to the physical product or technical specifications.

EDR DIN Rail Series

30W单路输出导轨电源系列 (HF30W-EDR-12)

Product Model：HF30W-EDR-12

Rated power
(W)：30

Channel (s)：单路

Input Voltage
(VAC)：85~264

Input Voltage
(VDC)：120~370

Output Voltage
(VDC)：12V

Output Current
(A)：2.5A

Op. Temp.
(℃)：-40~+70

Dimension
(mm)：25*68*69.5

Product Features

Ultra-Slim Metal DIN Rail Power Supply Series, power range: 30W-240W. Featuring DIN rail mounting with compact structure and easy installation. It offers significant advantages including worldwide wide-range voltage input, broad operating temperature range, high-altitude compatibility, high reliability, and safety isolation, delivering high stability and strong noise immunity. Electromagnetic compatibility and safety performance comply with the latest international and domestic standards.
Widely used in industrial control, machinery equipment, rail transportation, building automation, and other applications.

Ultra-slim design, suitable for confined spaces Key components from renowned domestic and international brands 3000VAC high isolation voltage 3-year limited warranty
TS-35/7.5/15 standard DIN rail mounting Operating temperature range: -40°C to +70°C Withstands 300VAC input surge voltage for 5 seconds
Wide input voltage range: 85~264VAC / 120~370VDC Suitable for applications up to 5000m altitude Output overload, overvoltage, and short-circuit protection

Technical Parameters

产品型号

HF30W-EDR-12
产品规格

12V2.5A
输入电压范围

85~264VAC (120~370VDC)
输入频率范围

47~63Hz
输入启动冲击电流

冷启动，45A/230VAC
输入漏电流

<0.5mA/240VAC
电网调整率 (满载时)

±0.5%
输出电压调节范围

12-15V
输出过载保护

110~200%, 打嗝模式（异常条件移除后可自动恢复）
输出过压保护

16-19V, 打嗝模式（异常条件移除后可自动恢复）
绝缘强度

I/P -O/P: 4.0KVAC/1min; I/P-F/G: 2.0KVAC/1min; O/P-F/G: 1.5KVAC/1min
上升时间

<50ms/230Vac
保持时间

≥14ms/110Vac； ≥40ms/220Vac
工作温度

-40℃~+70℃ （参考减额曲线图）
安全标准

符合 EN61558-1, EN61558-2-16, IEC/EN62368-1, GB4943.1
电磁兼容标准

符合 EN55032 Class A, EN55035, EN61000-3-2, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61000-6-2, 4, GB17625.1, GB/T9254.1
冷却方式

自然冷却
接线端子

Input: 5.0mm-3P, Output: 5.0mm-2P
重量

0.12kg
