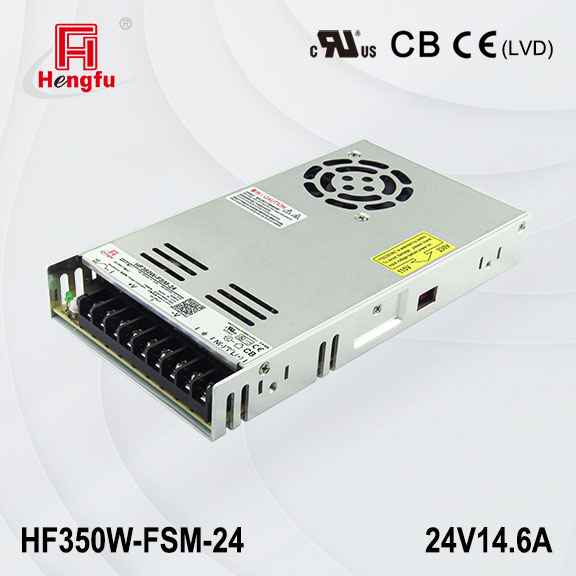

*Image for reference only. Subject to the physical product or technical specifications.

LSM Series (Universal Input)

350W单路输出FSM系列 (HF350W-FSM-24)

Product Model：HF350W-FSM-24

Rated power
(W)：350.4

Channel (s)：单路

Input Voltage
(VAC)：85~132/170~264

Input Voltage
(VDC)：120~187/240~370

Output Voltage
(VDC)：24

Output Current
(A)：14.6A

Op. Temp.
(℃)：-30°C~+70°C

Dimension
(mm)：215*115*30

Downloads：安装图

Certificate report： UL62368证书丨 UL60950证书丨 CE-LVD证书丨 CB-IEC62368证书丨 CB-IEC60950证书

Product Features

LSM Series standard metal casing switching power supplies cover a power range of 35W to 350W, adopting an ultra-slim design and certified with UL, CE, CB, CCC, and other international standards, meeting comprehensive safety requirements.
Standard output voltages include 5V, 12V, 15V, 24V, 28V, 36V, and 48V, meeting the needs of different scenarios. For personalized services, please contact our sales team.

Ultra-slim design, thickness only 30mm Key components from renowned domestic and international brands Withstands 300Vac input surge voltage for 5 seconds 3-year limited warranty
Worldwide wide-range AC input Low ripple noise, low standby power consumption, high efficiency Suitable for 5000m altitude applications
Wide operating temperature: -30°C to +70°C Isolation voltage up to 3000Vac between input and output Output overload, overvoltage, short-circuit protection

Technical Parameters

产品型号

HF350W-FSM-24
产品规格

24V14.6A
额定输入电压

100-120Vac (140-170Vdc)/200-240Vac (280-340Vdc)
输入电压范围

85~132Vac (120-187Vdc)/170~264Vac (240-370Vdc)
额定输入频率

50/60Hz
输入频率范围

47~63Hz
输入电流

＜7.2A/115Vac; ＜3.6A/230Vac
输入启动冲击电流

65A/115Vac，65A/230Vac，冷启动 cold start
输入漏电流

＜0.75mA/240Vac
输出电压调节范围

±10%
电网调整率

±0.5%
负载调整率

±0.5%
输出电压精度

±1%
待机功耗

＜0.8W/230Vac
纹波与噪声

≤150mVp-p
效率 (Typ.)

87%
