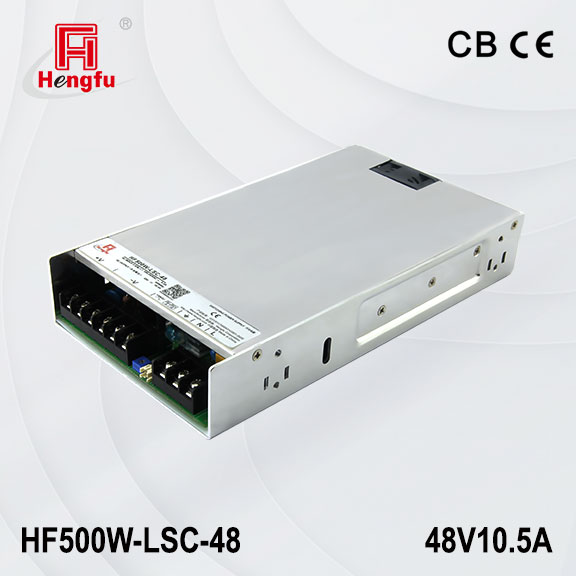

*Image for reference only. Subject to the physical product or technical specifications.

PFC Series

500W单路输出PFC系列（HF500W-LSC-48）

Product Model：HF500W-LSC-48

Rated power
(W)：504

Channel (s)：单路

Input Voltage
(VAC)：85~264

Input Voltage
(VDC)：120~370

Output Voltage
(VDC)：48

Output Current
(A)：10.5

Op. Temp.
(℃)：-30~+70

Dimension
(mm)：230*127*40.5

Product Features

This series of switching power supplies adopts a metal housing and active PFC design, with a power range from 100W to 3000W. It features worldwide wide-range voltage input, high power factor (PF), broad operating temperature range, and high-altitude applicability. Additionally, it offers low power consumption, high efficiency, high reliability, and safety isolation, making it well-suited for both inductive and capacitive loads.
Widely used in industrial equipment, consumer electronics, infrastructure, and various other fields.

Ultra-slim design, cost-effective Operating temperature: -30°C to +70°C Low ripple noise, low standby power consumption, high efficiency 3-year limited warranty
Worldwide wide-range voltage input 3000VAC high isolation voltage Output overload, overvoltage, short-circuit protection
Built-in active PFC function, PF value up to 98% Withstands 300VAC input surge voltage for 5 seconds Suitable for 5000m altitude applications

Technical Parameters

产品型号

HF500W-LSC-48
产品规格

48V10.5A
外形尺寸 (mm)

230×127×40.5
重量

1.07kg, 12pcs
输入电压范围

85~264VAC (120~370VDC)
输入频率范围

47~63Hz
输入启动冲击电流

冷启动，65A/230VAC
输入漏电流

＜1mA/ 230VAC
电网调整率 (满载时)

≤±0.5%
输出电压调节范围

±10%
输出过载保护

105~150%，恒流限流，自恢复
输出过压保护

115~150%, 关断模式（电源重新上电后方可恢复）
绝缘强度

I/P -O/P: 3.0KVAC/1min; I/P-F/G: 2.0KVAC/1min; O/P-F/G: 0.5KVAC/1min 120ms
上升时间

20ms
保持时间

--
工作温度

-30℃~+70℃（参考减额曲线图）
安全标准

符合 UL62368-1, IEC/EN62368-1, GB4943.1
电磁兼容标准

符合 EN55032, EN55035, EN61000-3-2, 3, EN61000-4-2,3,4,5,6,8,11
冷却方式

风冷
