HF1000W-SE-24_衡孚开关电源

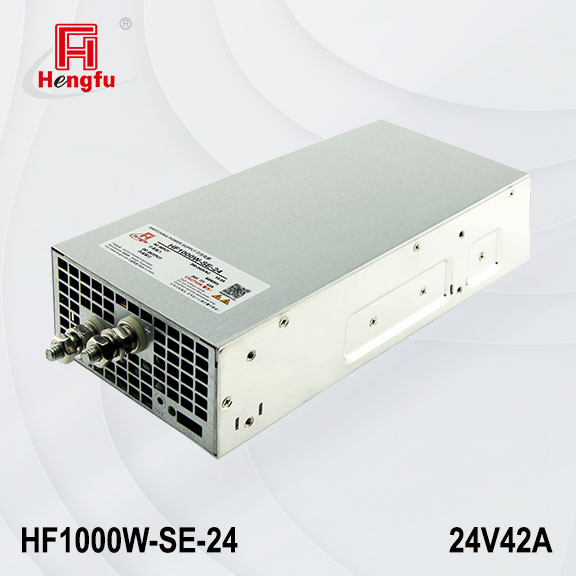

*Image for reference only. Subject to the physical product or technical specifications.

SE Series

1000W单路输出SE系列 (HF1000W-SE-24)

Product Model：HF1000W-SE-24

Rated power
(W)：1008

Channel (s)：单路

Output Voltage
(VDC)：24

Output Current
(A)：42A

Input Voltage
(VAC)：170~264

Input Voltage
(VDC)：240~370

Op. Temp.
(℃)：-20~+70

Dimension
(mm)：278*127*63.5

Product Features

SE Series Standard Metal Housing Switching Power Supply, with a power range of 25W to 1500W, is Hengfu's meticulously developed second-generation compact product. During the design process, we comprehensively considered size, performance, and price, committed to providing users with stable performance and highly cost-effective power solutions.
The product offers standard output voltages such as 5V, 12V, 15V, 24V, 28V, 36V, and 48V to meet the needs of different scenarios. For personalized services, please contact our sales team.

Compact Size 3000VAC High Isolation Voltage Output Overload, Overvoltage, and Short-circuit Protection 2-Year Limited Warranty
Input Voltage Range: 170~264VAC / 240~370VDC Built-in EMI Filter High Efficiency, High Reliability, Long Service Life
Operating Temperature: -30°C to +70°C Key Components from Renowned Domestic and International Brands Suitable for Demanding Operating Environments

Technical Parameters

产品型号

HF1000W-SE-24
产品规格

24V42A
外形尺寸 (mm)

278×127×63.5
重量＆小包装量

1.7kg, 6pcs
输入电压范围

170~264VAC (240~370VDC)
输入频率范围

47~63Hz
输入启动冲击电流

冷启动，40A/230VAC
输入漏电流

＜0.5mA/ 230VAC
电网调整率 (满载时)

≤±0.5%
输出电压调节范围

±10%
输出过载保护

105~130%，恒流限流，自恢复
输出过压保护

115~150%，关断模式，重启恢复
绝缘强度

I/P -O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
上升时间

300ms/230VAC
保持时间

20ms/230VAC
工作温度

-20℃~+70℃ （参考减额曲线图）
安全标准

符合 UL62368-1, IEC/EN62368-1, GB4943.1
冷却方式

风冷
