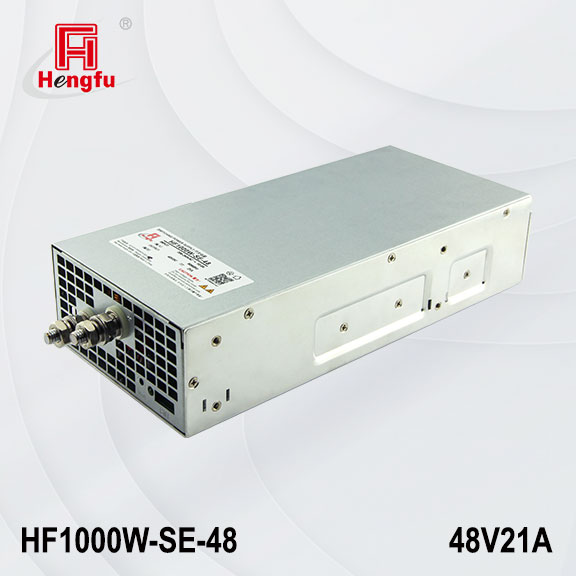

*Image for reference only. Subject to the physical product or technical specifications.

SE Series

1000W单路输出SE系列 (HF1000W-SE-48)

Product Model：HF1000W-SE-48

Rated power
(W)：1008

Channel (s)：单路

Output Voltage
(VDC)：48

Output Current
(A)：21A

Input Voltage
(VAC)：170~264

Input Voltage
(VDC)：240~370

Op. Temp.
(℃)：-30~+70

Dimension
(mm)：278*127*63.5

Product Features

SE Series Standard Metal Housing Switching Power Supply, with a power range of 25W to 1500W, is Hengfu's meticulously developed second-generation compact product. During the design process, we comprehensively considered size, performance, and price, committed to providing users with stable performance and highly cost-effective power solutions.
The product offers standard output voltages such as 5V, 12V, 15V, 24V, 28V, 36V, and 48V to meet the needs of different scenarios. For personalized services, please contact our sales team.

Compact Size 3000VAC High Isolation Voltage Output Overload, Overvoltage, and Short-circuit Protection 2-Year Limited Warranty
Input Voltage Range: 170~264VAC / 240~370VDC Built-in EMI Filter High Efficiency, High Reliability, Long Service Life
Operating Temperature: -30°C to +70°C Key Components from Renowned Domestic and International Brands Suitable for Demanding Operating Environments

Technical Parameters

产品型号

HF1000W-SE-48
产品规格

48V21A
输入电压范围

170~264VAC (240~370VDC)
输入频率范围

47~63Hz
输入漏电流

＜0.5mA/ 230VAC
输出电压调节范围

±10%
电网调整率

≤±0.5%
