HF600W-EQV-A_衡孚开关电源

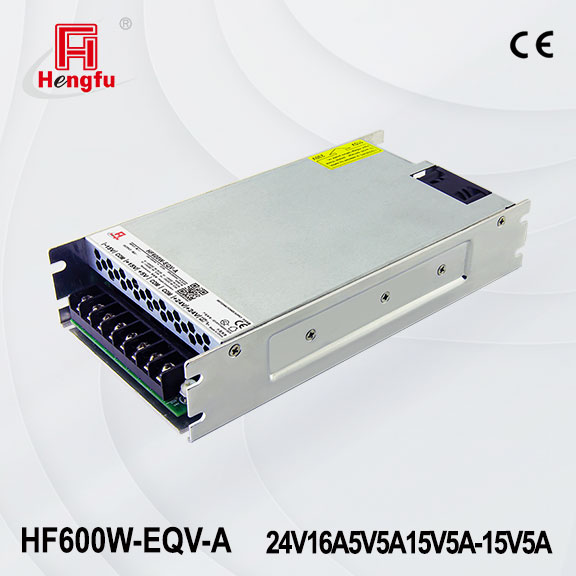

*Image for reference only. Subject to the physical product or technical specifications.

Laser equipment power supply

600W四路输出（HF600W-EQV-A）

Product Model：HF600W-EQV-A

Rated power
(W)：559

Input Voltage
(VAC)：85~132/170~264

Input Voltage
(VDC)：240~370

Output Voltage
(VDC)：24V, 5V, 15V, -15V

Output Current
(A)：16A, 5A, 5A, 5A

Channel (s)：四路

Op. Temp.
(℃)：-30°C~+70°C

Dimension
(mm)：215*112*43

Certificate report： CE-LVD证书

Product Features

Hengfu Switching Power Supply specially designed for laser equipment, developed specifically for laser cutting, marking and welding applications. Features standard metal housing with compact structure and multiple available specifications.
The product supports -30℃ to 70℃ wide temperature operation, with high-precision output, excellent load regulation and voltage accuracy. Built-in efficient EMI filter and industrial-grade metal housing adapt to various harsh conditions in industrial settings, meeting different equipment requirements.

Suitable for laser equipment Built-in EMI filter High efficiency, high reliability, long service life 3-year limited warranty
High-precision output Key components from renowned domestic and international brands Passed 5G vibration and shock tests
Wide operating temperature range Output overload, overvoltage, and short-circuit protection Suitable for various demanding working environments

Technical Parameters

产品型号

HF600W-EQV-A
产品规格

V1:24V16A, V2:5V5A, V3:15V5A, V4:-15V5A
额定输入电压

100-120Vac /200-240Vac 开关选择 by switch 280-340Vdc 开关拨在230V档位 switch on 230V
输入电压范围

85~132Vac /170~264Vac (240-370Vdc)
额定输入频率

50/60Hz
输入频率范围

47~63Hz
输入电流

＜12A/115Vac; ＜6.0A/230Vac
输入启动冲击电流

＜65A/230Vac，冷启动 cold start
输入漏电流

＜0.75mA/240Vac
输出电压调节范围

V1:±10%, V2:N/A, V3:N/A, V4:N/A
电网调整率

V1:±0.5%, V2:±1.0%, V3:±1.0%, V4:±1.0%
负载调整率

V1:±0.5%, V2:±1.0%, V3:±3.0%, V4:±6.0%
输出电压精度

V1:±1%, V2:±3.0%, V3:±3%, V4:±10%
待机功耗

--
纹波与噪声

V1:≤150mVp-p, V2:≤150mVp-p, V3:≤150mVp-p, V4:≤150mVp-p
效率 (Typ.)

86%
