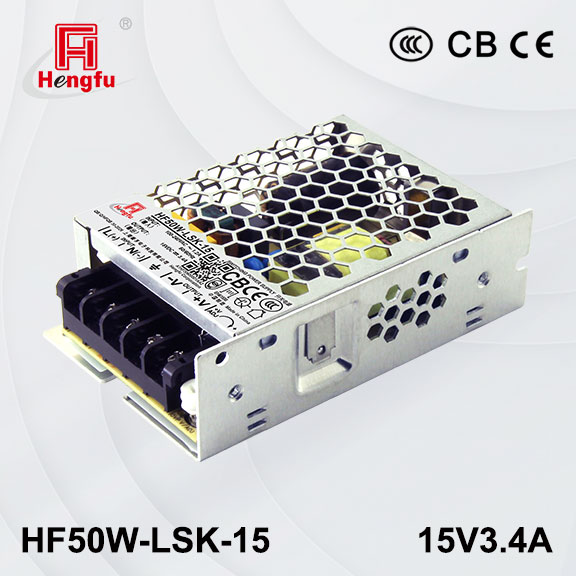

*Image for reference only. Subject to the physical product or technical specifications.

LSK Series (Universal Input)

50W Single Output LSK Series (HF50W-LSK-15)

Product Model：HF50W-LSK-15

Rated power
(W)：50

Channel (s)：Single

Input Voltage
(VAC)：85~264

Input Voltage
(VDC)：120~370

Output Voltage
(VDC)：15V

Output Current
(A)：3.4A

Op. Temp.
(℃)：-40~+70

Dimension
(mm)：99*65*30

Downloads： 3D drawing 丨 Drawing

Certificate report： CE-EMC 丨 CE-LVD 丨 CB 丨 CCC

Product Features

This series covers a power range of 15W to 600W, representing Hengfu's meticulously designed third-generation metal-cased switching power supply. Created to help customers achieve cost reduction, efficiency improvement, energy saving, environmental protection, and excellent adaptability, it features an ultra-slim compact design and comprehensive safety compliance.
We provide various standard output voltages including 5V, 12V, 15V, 24V, 28V, 36V, 48V, and 54V. Please contact our sales team for customization to meet special requirements.

Compact size, space-saving design Key components from renowned domestic and international brands Withstands 300VAC input surge voltage for 5 seconds 3-year limited warranty
Wide input voltage range: 85~264VAC / 120~370VDC Low ripple noise, low standby power consumption, high efficiency Suitable for 5000m altitude applications
Broad operating temperature: -40°C to +70°C Input-output isolation voltage up to 4000VAC Output overload, overvoltage, short-circuit protection

Technical Parameters

Model No.
DC Output
Dimension (mm)
Weight ＆ MPQ
Input voltage range
Input frequency
Inrush current
Input leakage current
Line regulation (full load)
Voltage adjust range
Standby power
Overload protection
Over voltage protection
Withstand voltage
Isolation resistance
Set up time
Rise time
Hold up time
Operating temperature
Operating humidity
Impact standards
Vibration standards
Safety standards
EMC standards
Cooling method
