HF3000W-SCN-60_Industrial Switching Power Supply Manufacturer

*Image for reference only. Subject to the physical product or technical specifications.

PFC Series

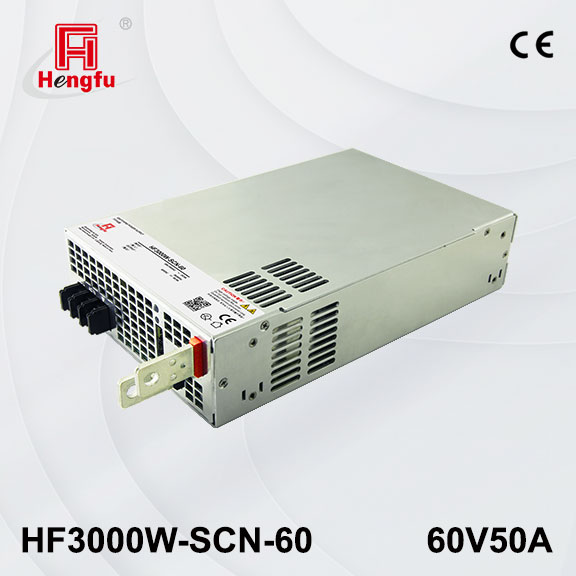

3000W Single Output SCN Series (HF3000W-SCN-60)

Product Model：HF3000W-SCN-60

Rated power
(W)：3000

Channel (s)：Single

Input Voltage
(VAC)：180~264

Input Voltage
(VDC)：254~370

Output Voltage
(VDC)：60

Output Current
(A)：50.0A

Op. Temp.
(℃)：-30~+70

Dimension
(mm)：278*178*63.5

Downloads： 3D drawing 丨 Drawing

Certificate report： CE-LVD

Product Features

This series of switching power supplies adopts a metal housing and active PFC design, with a power range from 100W to 3000W. It features worldwide wide-range voltage input, high power factor (PF), broad operating temperature range, and high-altitude applicability. Additionally, it offers low power consumption, high efficiency, high reliability, and safety isolation, making it well-suited for both inductive and capacitive loads.
Widely used in industrial equipment, consumer electronics, infrastructure, and various other fields.

Ultra-slim design, cost-effective Operating temperature: -30°C to +70°C Low ripple noise, low standby power consumption, high efficiency 3-year limited warranty
Worldwide wide-range voltage input 3000VAC high isolation voltage Output overload, overvoltage, short-circuit protection
Built-in active PFC function, PF value up to 98% Withstands 300VAC input surge voltage for 5 seconds Suitable for 5000m altitude applications

Technical Parameters

Product Model

HF3000W-SCN-60
Product Specifications

60V, 50.0A
Rated Input Voltage

200-240Vac (280-340Vdc)
Input Voltage Range

180~264Vac (255~370Vdc)
Rated Input Frequency

50/60Hz
Input Frequency Range

47~63Hz
Input Current

20A/230Vac
Inrush Current

＜65A/230Vac，冷启动 cold start
Input Leakage Current

＜1mA/240Vac
Line Regulation

±0.5%
Load Regulation

±0.5%
Output Voltage Accuracy

±1%
