HF55W-SE-24_Industrial Switching Power Supply Manufacturer

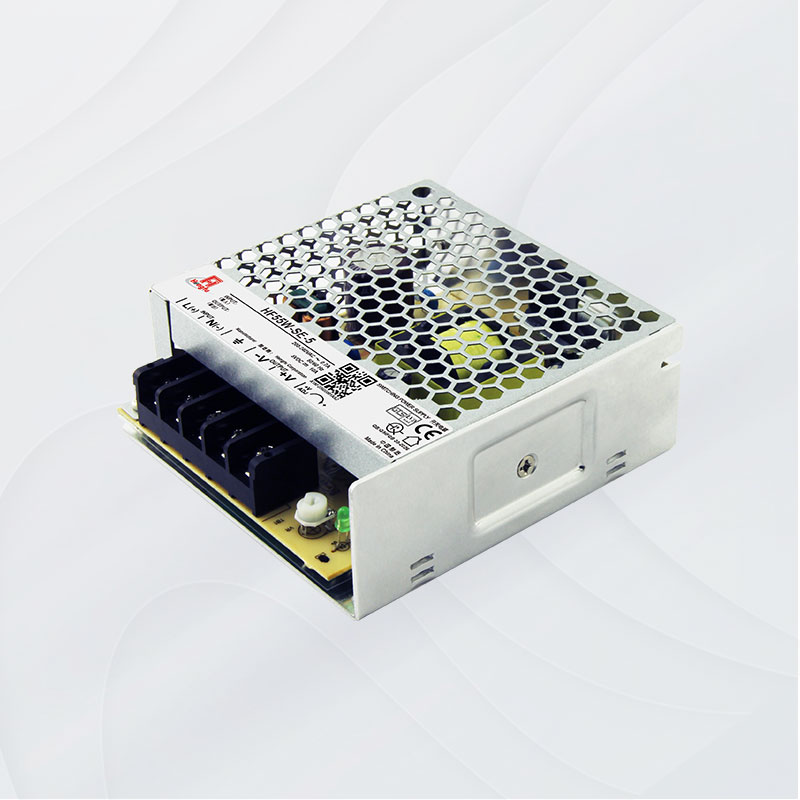

*Image for reference only. Subject to the physical product or technical specifications.

SE Series

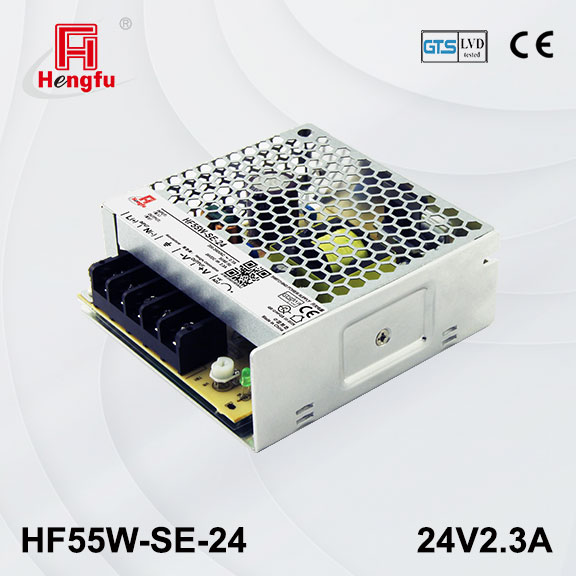

55W Single Output SE Series (HF55W-SE-24)

Product Model：HF55W-SE-24

Rated power
(W)：55.2

Channel (s)：Single

Input Voltage
(VAC)：170~264

Input Voltage
(VDC)：240~370

Output Voltage
(VDC)：24

Output Current
(A)：2.3A

Op. Temp.
(℃)：-30~+70

Dimension
(mm)：99*97*38

Downloads： 3D drawing 丨 Drawing

Certificate report： CE-LVD

Product Features

SE Series Standard Metal Housing Switching Power Supply, with a power range of 25W to 1500W, is Hengfu's meticulously developed second-generation compact product. During the design process, we comprehensively considered size, performance, and price, committed to providing users with stable performance and highly cost-effective power solutions.
The product offers standard output voltages such as 5V, 12V, 15V, 24V, 28V, 36V, and 48V to meet the needs of different scenarios. For personalized services, please contact our sales team.

Compact Size 3000VAC High Isolation Voltage Output Overload, Overvoltage, and Short-circuit Protection 2-Year Limited Warranty
Input Voltage Range: 170~264VAC / 240~370VDC Built-in EMI Filter High Efficiency, High Reliability, Long Service Life
Operating Temperature: -30°C to +70°C Key Components from Renowned Domestic and International Brands Suitable for Demanding Operating Environments

Technical Parameters

Product Model

HF55W-SE-24
Product Specifications

24V, 2.3A
Rated Input Voltage

200-240Vac (280-340Vdc)
Input Voltage Range

170~264Vac (240-370Vdc)
Rated Input Frequency

50/60Hz
Input Frequency Range

47~63Hz
Input Current

＜0.7A/230Vac
Inrush Current

＜45A/230Vac，冷启动 cold start
Input Leakage Current

＜0.5mA/240Vac
Voltage Adjust Range

±10%
Line Regulation

±0.5%
Load Regulation

±0.5%
Output Voltage Accuracy

±1%
Ripple & Noise

≤150mVp-p
Efficiency (Typ.)

88%
