EDR DIN Rail Series | Power Range: 30W-480W

2025.07.01

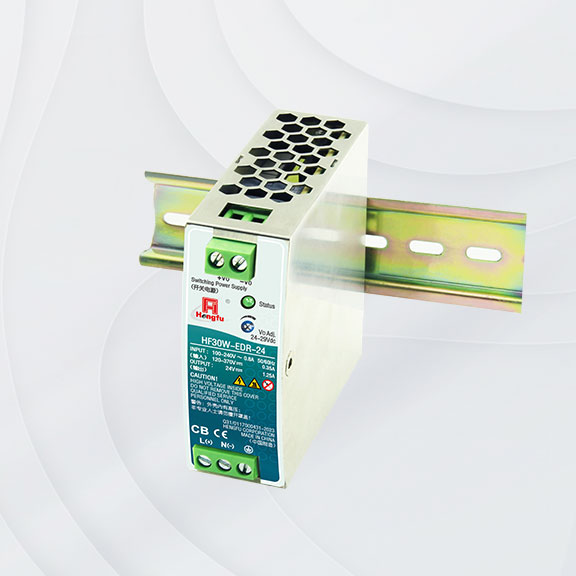

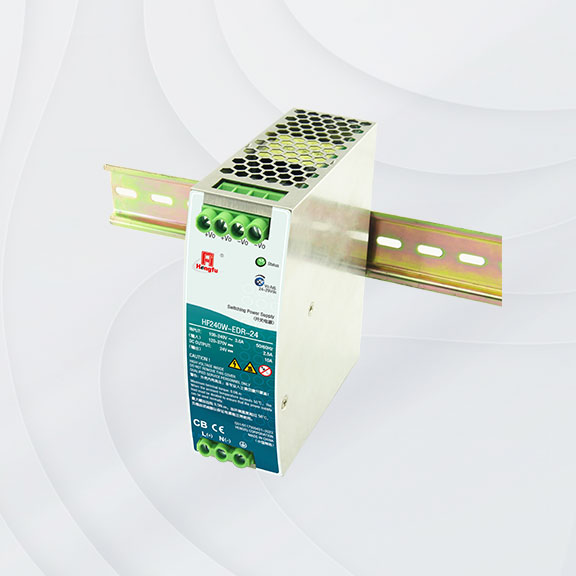

EDR Series Ultra-Slim Metal DIN Rail Power SupplyPower Range: 30W - 240W.

Featuring DIN rail mounting, this compact and easy-to-install power supply offers significant advantages including wide-range global voltage input, broad operating temperature range, high-altitude adaptability, high reliability, and safe isolation. It delivers high stability and strong noise immunity, with electromagnetic compatibility and safety performance complying with the latest international and domestic standards.

Widely used in industrial control, mechanical equipment, rail transportation, building automation, and other applications.

Standard output voltages include 12V/24V/36V/48V configurations to meet diverse requirements. Please contact our sales team for customization options.

Related Products

Product Model
Product Parameters
Data Sheet
Sample Request
Buy Now
  • Rated power
    (W):30.0000
    Input Voltage
    (VAC):85~264
    Output Voltage
    (VDC):12V
    Op. Temp.
    (℃):-40~+70
    Channel (s):单路
    Input Voltage
    (VDC):120~370
    Output Current
    (A):2.5A
    Dimension
    (mm):25*68*69.5
    Rated power
    (W):30.0000
    Channel (s):单路
    Input Voltage
    (VAC):85~264
    Input Voltage
    (VDC):120~370
    Output Voltage
    (VDC):12V
    Output Current
    (A):2.5A
    Op. Temp.
    (℃):-40~+70
    Dimension
    (mm):25*68*69.5
  • Rated power
    (W):120.0000
    Input Voltage
    (VAC):85~264
    Output Voltage
    (VDC):24V
    Op. Temp.
    (℃):-40~+70
    Channel (s):单路
    Input Voltage
    (VDC):120~370
    Output Current
    (A):5
    Dimension
    (mm):32*125*86
    Rated power
    (W):120.0000
    Channel (s):单路
    Input Voltage
    (VAC):85~264
    Input Voltage
    (VDC):120~370
    Output Voltage
    (VDC):24V
    Output Current
    (A):5
    Op. Temp.
    (℃):-40~+70
    Dimension
    (mm):32*125*86
  • Rated power
    (W):240.0000
    Input Voltage
    (VAC):85~264
    Output Voltage
    (VDC):24V
    Op. Temp.
    (℃):-40~+70
    Channel (s):单路
    Input Voltage
    (VDC):120~370
    Output Current
    (A):10
    Dimension
    (mm):41*124*110.5
    Rated power
    (W):240.0000
    Channel (s):单路
    Input Voltage
    (VAC):85~264
    Input Voltage
    (VDC):120~370
    Output Voltage
    (VDC):24V
    Output Current
    (A):10
    Op. Temp.
    (℃):-40~+70
    Dimension
    (mm):41*124*110.5
For more products, please contact customer service or request customization.
