Location: Home >Products >AC/DC Single Output >PFC Series >HF500W-LSC-24

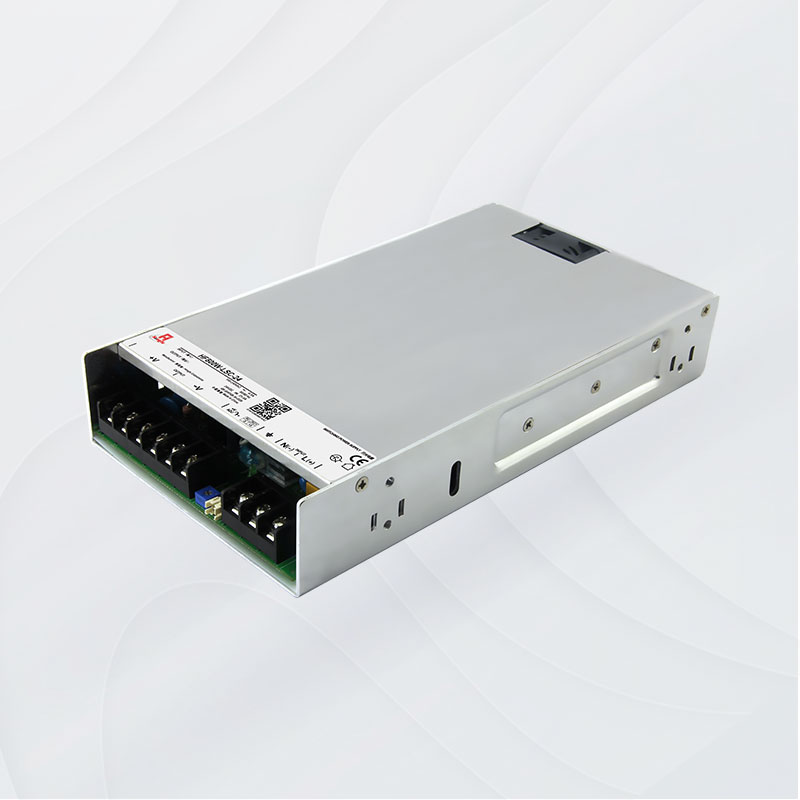

*Image for reference only. Subject to the physical product or technical specifications.
PFC Series

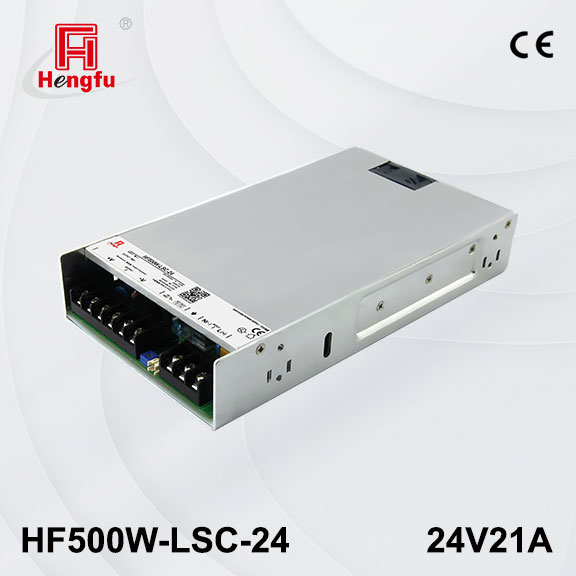

500W Single Output LSC Series (HF500W-LSC-24)
Product Model：HF500W-LSC-24
Rated power
(W)：504
Channel (s)：Single
Input Voltage
(VAC)：85~264
Input Voltage
(VDC)：120~370
Output Voltage
(VDC)：24
Output Current
(A)：21.0A
Op. Temp.
(℃)：-30~+70
Dimension
(mm)：230*127*40.5
Downloads： Drawing
Certificate report： CE-LVD
Data Sheet
Sample Request
Product Inquiry
Buy Now

Product Features

This series of switching power supplies adopts a metal housing and active PFC design, with a power range from 100W to 3000W. It features worldwide wide-range voltage input, high power factor (PF), broad operating temperature range, and high-altitude applicability. Additionally, it offers low power consumption, high efficiency, high reliability, and safety isolation, making it well-suited for both inductive and capacitive loads.
Widely used in industrial equipment, consumer electronics, infrastructure, and various other fields.

Technical Parameters

  • Product Model
    HF500W-LSC-24
  • Product Specifications
    24V, 21.0A
  • Input voltage range
    85~264VAC (120~370VDC)
  • Input frequency
    47~63Hz
  • Inrush current
    ＜65A/230VAC, cold start
  • Input leakage current
    ＜1mA/240VAC
  • Line regulation
    ≤±0.5%
  • Voltage adjust range
    ±10%
  • Overload protection
    105~150%, current limiting, auto recovery
  • Over voltage protection
    115~150%, shut off, re-power on to recover
  • Withstand voltage
    I/P -O/P: 3.0KVAC/1min; I/P-F/G: 2.0KVAC/1min; O/P-F/G: 0.5KVAC/1min
  • Rise time
    ＜120ms/230VAC
  • Hold up time
    ≥20ms/230VAC
  • Operating temperature
    -30℃~+70℃ (refer to the derating curve)
  • Safety standards
    meet UL62368-1, EN IEC62368-1, GB4943.1
  • Cooling method
    FAN
  • Weight ＆ MPQ
    1.07kg, 12pcs
  • Ripple & Noise
    150mV
  • Efficiency (Typ.)
    89%

Related Products

Product Picture
Product Model
Product Parameters
Data Sheet
Sample Request
Buy Now
  •
    Product Model：
    HF500W-LSC-12
    Product Parameters
    Rated power
    (W)：500.4
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-30~+70
    Channel (s)：Single
    Output Voltage
    (VDC)：12
    Dimension
    (mm)：230*127*40.5
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：41.7A
    Rated power
    (W)：500.4
    Channel (s)：Single
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：12
    Output Current
    (A)：41.7A
    Op. Temp.
    (℃)：-30~+70
    Dimension
    (mm)：230*127*40.5
  •
    Product Model：
    HF500W-LSC-48
    Product Parameters
    Rated power
    (W)：504
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-30~+70
    Channel (s)：Single
    Output Voltage
    (VDC)：48
    Dimension
    (mm)：230*127*40.5
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：10.5A
    Rated power
    (W)：504
    Channel (s)：Single
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：48
    Output Current
    (A)：10.5A
    Op. Temp.
    (℃)：-30~+70
    Dimension
    (mm)：230*127*40.5
  •
    Product Model：
    HF350W-LSC-24
    Product Parameters
    Rated power
    (W)：350
    Input Voltage
    (VDC)：120~370
    Op. Temp.
    (℃)：-40~+70
    Channel (s)：Single
    Output Voltage
    (VDC)：24
    Dimension
    (mm)：179*99*30
    Input Voltage
    (VAC)：85~264
    Output Current
    (A)：14.6A
    Rated power
    (W)：350
    Channel (s)：Single
    Input Voltage
    (VAC)：85~264
    Input Voltage
    (VDC)：120~370
    Output Voltage
    (VDC)：24
    Output Current
    (A)：14.6A
    Op. Temp.
    (℃)：-40~+70
    Dimension
    (mm)：179*99*30
  •
    Product Model：
    HF2400W-SCN-24
    Product Parameters
    Rated power
    (W)：2400
    Input Voltage
    (VDC)：254~370
    Op. Temp.
    (℃)：-30~+70
    Channel (s)：Single
    Output Voltage
    (VDC)：24
    Dimension
    (mm)：278*178*63.5
    Input Voltage
    (VAC)：180~264
    Output Current
    (A)：100.0A
    Rated power
    (W)：2400
    Channel (s)：Single
    Input Voltage
    (VAC)：180~264
    Input Voltage
    (VDC)：254~370
    Output Voltage
    (VDC)：24
    Output Current
    (A)：100.0A
    Op. Temp.
    (℃)：-30~+70
    Dimension
    (mm)：278*178*63.5
  •
    Product Model：
    HF3000W-SCN-24
    Product Parameters
    Rated power
    (W)：3000
    Input Voltage
    (VDC)：254~370
    Op. Temp.
    (℃)：-30~+70
    Channel (s)：Single
    Output Voltage
    (VDC)：24
    Dimension
    (mm)：278*178*63.5
    Input Voltage
    (VAC)：180~264
    Output Current
    (A)：125.0A
    Rated power
    (W)：3000
    Channel (s)：Single
    Input Voltage
    (VAC)：180~264
    Input Voltage
    (VDC)：254~370
    Output Voltage
    (VDC)：24
    Output Current
    (A)：125.0A
    Op. Temp.
    (℃)：-30~+70
    Dimension
    (mm)：278*178*63.5
For more products, please contact customer service or request customization.
