HF350W-LSC-24_Industrial Switching Power Supply Manufacturer

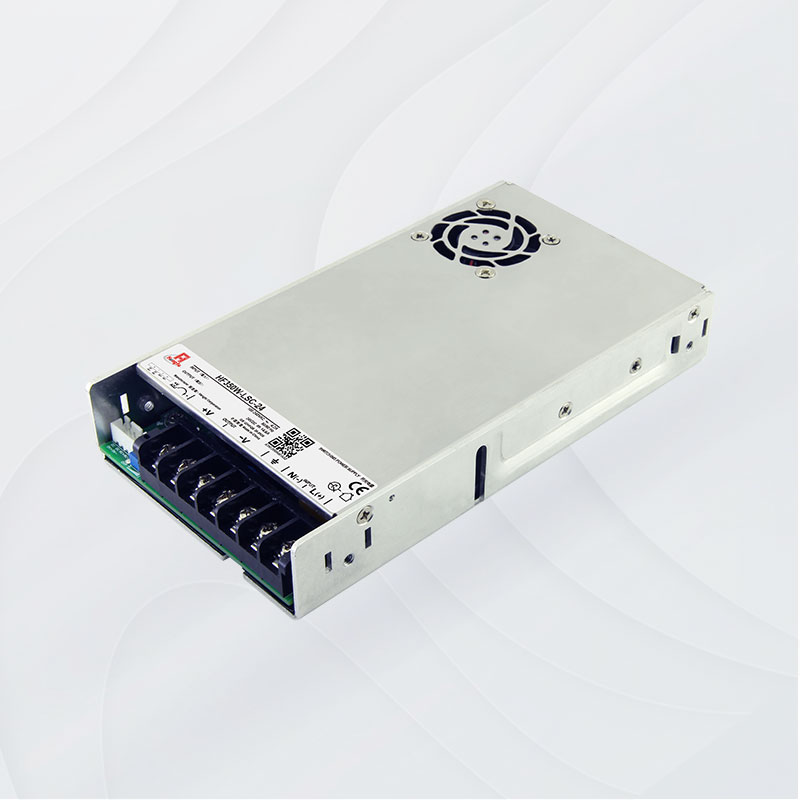

*Image for reference only. Subject to the physical product or technical specifications.

PFC Series

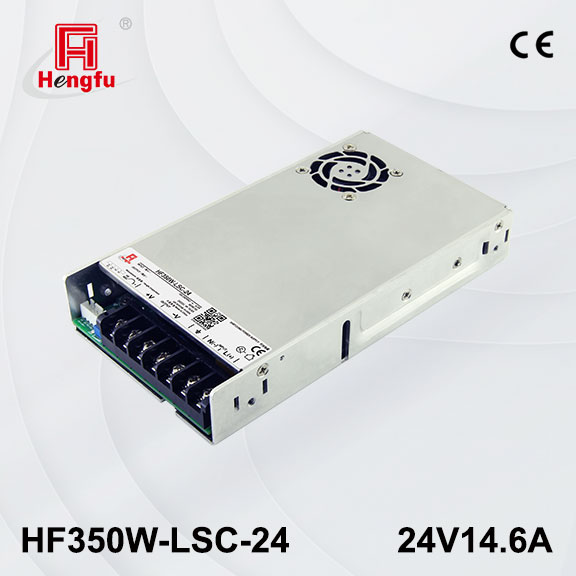

350W Single Output LSC Series (HF350W-LSC-24)

Product Model：HF350W-LSC-24

Rated power
(W)：350

Channel (s)：Single

Input Voltage
(VAC)：85~264

Input Voltage
(VDC)：120~370

Output Voltage
(VDC)：24

Output Current
(A)：14.6A

Op. Temp.
(℃)：-40~+70

Dimension
(mm)：179*99*30

Downloads： 3D drawing 丨 Drawing

Product Features

This series of switching power supplies adopts a metal housing and active PFC design, with a power range from 100W to 3000W. It features worldwide wide-range voltage input, high power factor (PF), broad operating temperature range, and high-altitude applicability. Additionally, it offers low power consumption, high efficiency, high reliability, and safety isolation, making it well-suited for both inductive and capacitive loads.
Widely used in industrial equipment, consumer electronics, infrastructure, and various other fields.

Ultra-slim design, cost-effective Operating temperature: -30°C to +70°C Low ripple noise, low standby power consumption, high efficiency 3-year limited warranty
Worldwide wide-range voltage input 3000VAC high isolation voltage Output overload, overvoltage, short-circuit protection
Built-in active PFC function, PF value up to 98% Withstands 300VAC input surge voltage for 5 seconds Suitable for 5000m altitude applications

Technical Parameters

Product Model

HF350W-LSC-24
Product Specifications

24V, 14.6A
Rated Input Voltage

100-240Vac (140-340Vdc)
Input Voltage Range

85~264Vac (120~370Vdc)
Rated Input Frequency

50/60Hz
Input Frequency Range

47~63Hz
Input Current

<4.2A/115Vac; <2.5A/230Vac
Inrush Current

＜65A/230Vac，冷启动 cold start
Input Leakage Current

＜0.5mA/240Vac
Voltage Adjust Range

±10%
Line Regulation

±0.5%
Load Regulation

±1%
Output Voltage Accuracy

±1%
Ripple & Noise

≤200mVp-p
Efficiency (Typ.)

93.5%
